Computerized Fatigue Testing Machine

Get a Price/Quote

Product Details:

Operating Voltage 230V AC
Automation Grade Fully Automatic
Equipment Type Computerized Fatigue Testing Machine
Resolution 0.1 Nm
Application Material strength and fatigue life analysis
Display Type Digital LCD & PC Monitor
Interface Type USB/PC interface
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Computerized Fatigue Testing Machine Price And Quantity

Minimum Order Quantity 1 Piece

System Requirement Minimum Intel i3, 4GB RAM, USB Port
Finish Powder coated rust resistant body
Software Compatibility Windows 7/8/10
Torque Range 0-600 Nm (adjustable)
Cycle Counter Digital, up to 10 million cycles
Noise Level <65 dB
Specimen Gripping Self-centering jaw clamps
Safety Features Overload protection, emergency stop switch
Test Modes Rotating bending, axial loading
Output Format Printable test reports, graphical results
Cooling Air cooled

Computerized Fatigue Testing Machine Product Specifications

Machine Weight Approx 150 kg
Specimen Size Diameter: 8 mm, Length: 100 mm (Standard)
Power Supply 230V AC, 50Hz, Single Phase
Max Height 1200 mm
Measuring Range 0-600 Nm
Humidity Up to 90% RH, non-condensing
Features Software controlled, digital readout, overload protection
Number of Specimens 1 (at a time)
Test Range 0-600 Nm
Accuracy 0.5%
Port Size Standard USB Interface
Frequency 50 Hz
Test Speed Up to 2850 RPM
Capacity Up to 600 Nm
Response Time <1 s
Control Mode Computerized (PC Based)
Interface Type USB/PC interface
Temperature Room Temperature to 50C
Hardness Suitable for steel & alloy specimens
Mounting Type Floor Mounted
Test Width Variable with specimen size
Test Stroke Standard 10-30 mm
Automation Grade Fully Automatic
Operating Voltage 230V AC
Usage Laboratory, R&D, Quality Control
Resolution 0.1 Nm
Equipment Type Computerized Fatigue Testing Machine
Display Type Digital LCD & PC Monitor
Application Material strength and fatigue life analysis

System Requirement Minimum Intel i3, 4GB RAM, USB Port
Finish Powder coated rust resistant body
Software Compatibility Windows 7/8/10
Torque Range 0-600 Nm (adjustable)
Cycle Counter Digital, up to 10 million cycles
Noise Level <65 dB
Specimen Gripping Self-centering jaw clamps
Safety Features Overload protection, emergency stop switch
Test Modes Rotating bending, axial loading
Output Format Printable test reports, graphical results
Cooling Air cooled

Computerized Fatigue Testing Machine Trade Information

Payment Terms Cash Advance (CA)
Supply Ability 15-20 Piece Pices Per Month
Delivery Time 3 Days
Main Domestic Market All India

Product Description

We are the well-known manufacturer and supplier of the finest quality Computerized Fatigue Testing Machine that is mainly used in hospital, clinic and various other places to test temporary physical inability of a muscle. Offered machine is manufactured under the guidance of ingenious professionals using premium quality components and progressive technology. Being a quality oriented enterprise, we assure our customers that the offered Computerized Fatigue Testing Machine is excellent on counts of performance as well as functionality.

Features:

Sturdiness
Long operational life
Accurate measurement
Excellent performance

Advanced Material Testing Capabilities

This computerized fatigue testing machine enables both rotating bending and axial loading tests, covering a broad range of fatigue scenarios. Designed to deliver high accuracy (0.5%) and high resolution (0.1 Nm), the machine ensures reliable performance for steel and alloy specimens, making it an indispensable tool for material analysis and product development.

User-Friendly & Secure Operation

With a digital LCD and PC monitor interface, the system is easy to operate and monitor. The inclusion of safety features like overload protection and an emergency stop switch prioritizes operator safety. The machine comes fully automated, requiring minimal intervention and supports seamless integration with PCs via a standard USB interface.

Versatile Applications & Robust Construction

Engineered for laboratory, R&D, and industrial quality control applications, the machine boasts a powder-coated, rust-resistant finish and a robust build weighing approximately 150 kg. Its self-centering jaw clamps accommodate specimens of 8mm diameter and 100mm length, while the air-cooled operation keeps system noise under 65 dB.

FAQs of Computerized Fatigue Testing Machine:

Q: How does the computerized fatigue testing machine ensure accurate fatigue life analysis?

A: The machine uses a highly sensitive load cell and digital cycle counter, capable of precisely measuring torque (0600 Nm) with a 0.5% accuracy and 0.1 Nm resolution. Software algorithms control the entire test procedure, ensuring consistency in stress application, while self-centering clamps eliminate misalignment, resulting in reliable fatigue life assessments.

Q: What types of test modes are supported and how do you switch between them?

A: This system supports both rotating bending and axial loading test modes, suitable for comprehensive material fatigue analysis. Switching modes is straightforward through the PC-based software interface, enabling users to configure test parameters and select the appropriate loading scenario before specimen mounting.

Q: When should the emergency stop switch be used during operation?

A: The emergency stop switch is designed for immediate shutdown in the event of any irregularity or safety concern during testing, such as unexpected vibrations, specimen failure, or accidental overloading. This feature enhances operator safety and protects both the specimen and equipment.

Q: Where can this fatigue testing machine be installed and utilized effectively?

A: Given its floor-mounted design and fully automatic controls, the machine is well-suited for laboratory environments, R&D facilities, and industrial quality control settings. It only requires standard 230V AC power supply and a compatible PC with minimum Intel i3, 4GB RAM, and Windows 7/8/10 for seamless operation.

Q: What is the process for installing and setting up the machine?

A: Begin by positioning the machine on a level laboratory floor and connect it to a standard 230V AC power source. Attach the USB interface to a compatible PC, install the provided software, and follow the on-screen setup for calibration. Once a specimen is secured in the self-centering clamps, testing parameters can be entered into the software to begin analysis.

Q: How does the software help in test result analysis and reporting?

A: The included software not only controls the test process but also records detailed data, including digital cycle counts, real-time torque measurements, and graphical trends. Results are displayed on both the digital LCD and PC monitor, and can be printed as comprehensive reportsfacilitating easy documentation and sharing.

Q: What benefits does the overload protection feature offer during fatigue testing?

A: Overload protection detects excessive load conditions in real time, automatically pausing or ending the test to prevent damage to the specimen and instrumentation. This safety feature helps maintain the longevity of the machine, minimizes downtime, and ensures the validity and consistency of test results.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Interface Unit' category

Computer Interface Unit Price : 50000.0 INR/Piece Minimum Order Quantity : 1 Usage : Material testing, Laboratory Analysis Control Mode : Microprocessorbased digital control Temperature : 10C to 40C Accuracy : 0.5% of full scale Power Supply : 220 V AC, 50/60 Hz Features : Realtime data logging, Userfriendly software, Plug and Play operations Operating Voltage : 220 V Automation Grade : Semiautomatic Equipment Type : Computer Interface Unit Resolution : 0.01 N Display Type : Digital LCD Display Application : Data Acquisition, Control & Monitoring Interface Type : USB, RS232 Mounting Type : Table Top Test Width : 100 mm Test Stroke : 120 mm Test Range : 0500 N Port Size : USB 2.0 Frequency : 50/60 Hz Capacity : 500 N Response Time : < 100 ms Test Speed : Adjustable, up to 500 mm/min Machine Weight : Approximately 7 kg Max Height : 210 mm Specimen Size : Customizable according to test requirements Measuring Range : 0500 N Number of Specimens : Single Specimen Humidity : 20% to 90% RH, noncondensing

Send Inquiry

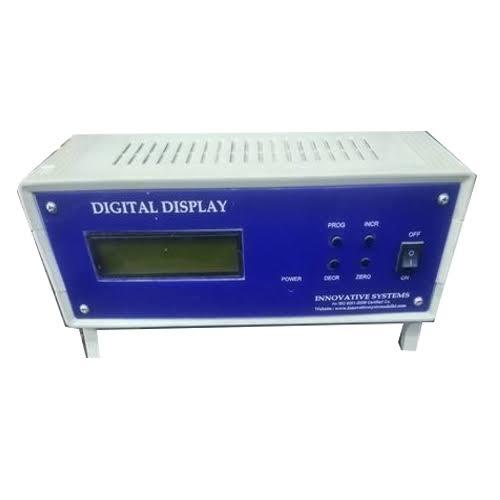

Digital UTM Conversion Price : 50000.0 INR/Piece Minimum Order Quantity : 1 Usage : Industrial Control Mode : Automatic Temperature : As per industry norms Celsius (oC) Accuracy : 100 % Power Supply : Electric Features : High Quality
